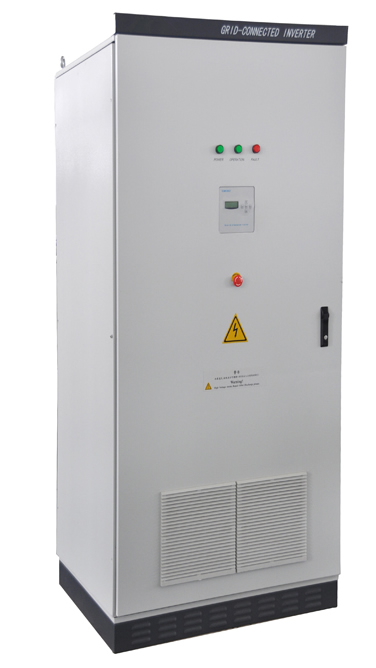

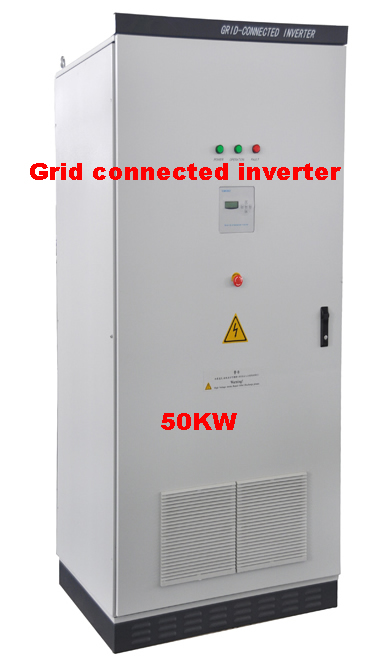

JAJE 50KW grid connected inverter
1. DC side ZVS BOOST circuit has lower power consumption and more reliable circuit.
2. network side is a multistage switch H-Brigde circuit, and the common mode voltage is very low, which is more suitable for the domestic rural power grid.
3. the highest efficiency of 98.7%, wide range input voltage;
4. built-in DC switch, easy to install and debug.
5. no transformer, no fan design, longer life;
6. multi-channel high efficiency MPPT technology, can be individually input, and can also directly cross link input;
7. big screen LCD monitoring, no need to set up;
8. IP65 design, outdoor installation;

Model |
JJNB-50KW |
Isolation mode |
Isolation of power frequency transformer |
Maximum DC input power |
55KWp |
Maximum DC input voltage |
850Vdc |
Maximum point tracking (MPPT) voltage range |
450Vdc-820Vdc@595Vdc |
Connection mode |
Terminal terminal |
Maximum input current |
122A |
Rated AC output power |
50KW |
Maximum AC output power |
55KW |
Current harmonic THDi |
<3% (rated power) |
power factor |
>0.99 |
Maximum efficiency |
95% |
European efficiency |
93% |
Rated output AC voltage |
380VacThree-phase |
Rated output AC frequency |
50Hz |
Permissible voltage range of power grid |
310-450 Vac |
Permissible power grid frequency range |
47.5-51.5Hz |
Self power consumption at night |
<100W |
Automatic delivery conditions |
DC input and power grid meet requirements, inverter automatic operation |
Automatic restart time after power failure |
5min（Adjustable) |
Protection function |
Polarity reverse connection, short circuit, island, overheating, overload, grounding fault protection, etc. |
communication interface |
RS485 |
working temperature |
-25℃-+55℃ |
relative humidity |
0-95%，Not frosting |
Poster height |
2000米（More than 2000 meters need to be reduced.） |
Cooling mode |
Forced air cooling |
noise |
≤60dB |
Protection grade |
IP20（indoor） |
Size （L*W*H，mm） |
800*600*2060 |
|
