JaJe brand electric complementary pure spin wave inverter

JaJe brand electric complementary pure spin wave inverter

JaJe brand electric complementary pure spin wave inverter

JaJe brand electric complementary pure spin wave inverter

Model / power

Battery voltage

weight

size /mm

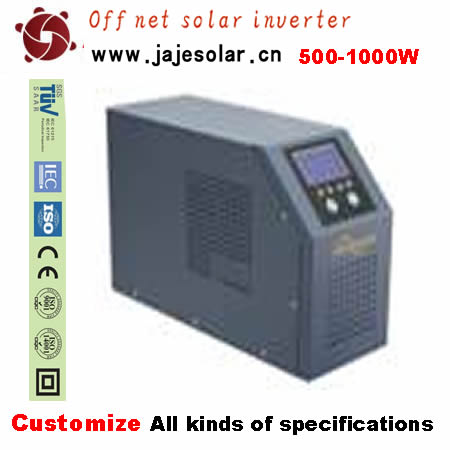

500w

12V

9kg

320*130*190

JaJe brand electric complementary pure spin wave inverter




1000W

12V

13kg

1000W

24V

15kg

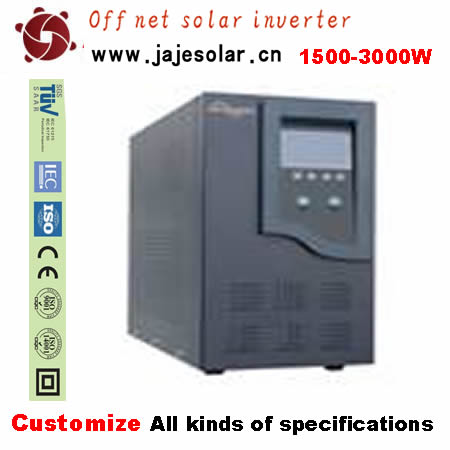

1500W

24V

20kg

?385*145*240

JaJe brand electric complementary pure spin wave inverter




1500W

48V

20kg

2000W

24V

21kg

2000W

48V

21kg

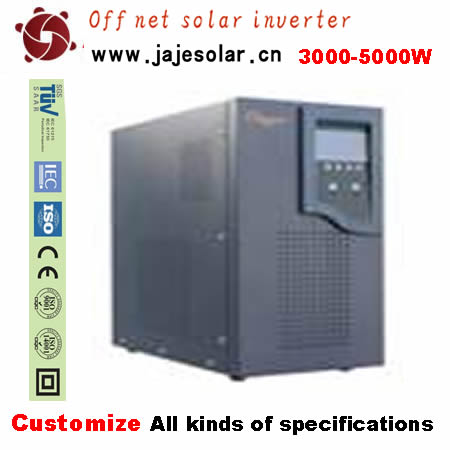

3000W

48V

24kg

3000W

24V

29kg

470*220*565

JaJe brand electric complementary pure spin wave inverter




5000W

48V

39kg

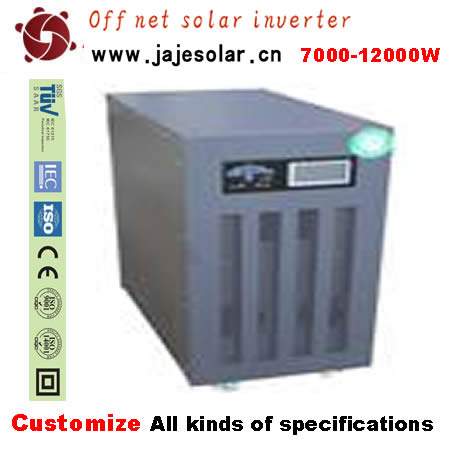

7000W

96V

57kg

620*395*745

JaJe brand electric complementary pure spin wave inverter




10000W

96V

65kg

550*600*1135

12000W

96V

67kg











product details

  1. The whole machine is guaranteed for one year

  2. Open tickets and add 7% tax points

  3. Providing OEM services; providing neutral products

JaJe brand electric complementary pure spin wave inverter

4, the above model is equally divided: solar priority and market priority, please note when the next single

Machine technology features: (output AC220V/50Hz can also produce 110VAC/60Hz)

The sine wave power frequency inverter uses intelligent microcomputer dual CPU control technology.

Using SPWM pulse width modulation technology, the output is a pure sine wave with stable frequency and steady voltage and low distortion.

Use intelligent battery management, overcharge, over discharge protection to prolong battery life.

Built-in overload, short circuit, overvoltage, undervoltage, over temperature and other protection functions, high safety.

With its own intelligent charging function, the battery charging is safer, more stable and more durable.

Simple and clear LED display (with LCD screen), convenient to observe the state of the machine.

Intelligent temperature control, based on the internal heat of the machine, determines the starting and closing of the fan in the heat dissipation system.

The built-in bypass switch improves the continuity and reliability of the power supply.

The built-in super strong transformer, the defense instantaneous current impact ability is good, the carrying capacity is strong.

The communication input terminal uses multiple filters to eliminate the interference of the electric power grid and meet the demanding requirements of all kinds of equipment.

City electricity priority mode: when the city is in the city electricity output, when the city electricity input fault automatically switch to the inverter output.

12. solar priority mode: first use battery power supply, when the battery capacity is less than 20%, automatically switch to the city power output (selection of solar power for special use.
