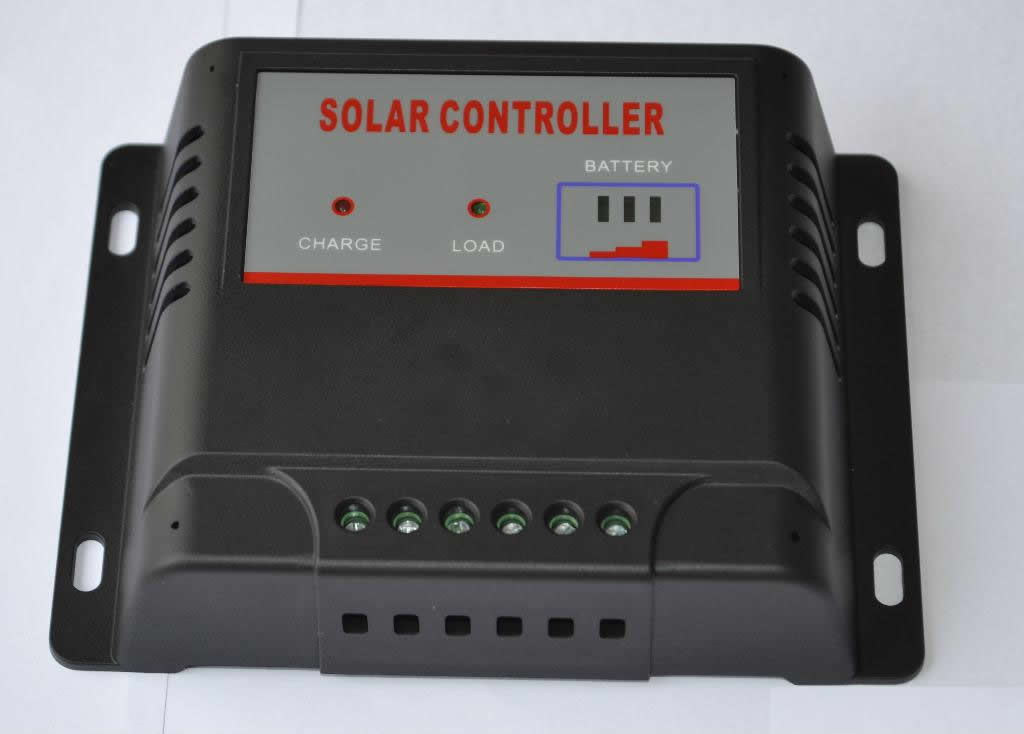

JAJE TC2015-12/24V solar controller

JAJE TC2015-12/24V solar controller

JAJE TC2015-12/24V solar controller

Product Name: solar controller

Product model: TC2015 (24/12v automatic identification of 6a, 10a, 12a, 15a)

JAJE TC2015-12/24V solar controller

Product Description: solar controller real-time collection of battery voltage, battery temperature, by accurately controlling the charging process of battery pack, can help users prolong battery life and maximize the performance of battery.

Functional characteristics:

The digital control, LED display;

The automatic temperature compensation;

The overload protection;

The short circuit protection;

The reverse discharge protection;

The reverse polarity protection;

The lightning protection;

The undervoltage protection;

The overcharge protection;

Technical parameters:

Specifications

T2015/6A

T2015/10A

TC2015/12A

TC2015/15A

Rated voltage

Automatic identification of 12V/24V

Maximum load current

Less than 6A

Less than 10A

Less than 12A

Less than 15A

Maximum charging current

Less than 6A

Less than 10A

Less than 12A

Less than 15A

Full of disconnection (HVD):13.7V/27.4v

Undervoltage disconnection (LVD):10.8V21.6v

Over release recovery (LVR):12.6V/25.2V

temperature compensation:-3mv/ C /cell

No-load loss:Less than 10mA

Maximum wire specification:2.5mm2

Loop pressure drop

<40mv

<55mv

<65mv

<70mv

weight\:196-197 grams

size:135mm*100mm*35mm (long * width * height)
